A high-precision entry-level buckle folder for miniature printed sheets, with quick changeover for small-batch production. The most compact machine in the SPEED range and the usual choice for pharmaceutical inserts and instruction leaflets.
High-precision entry-level buckle folder for small-format jobs. Delivers consistent fold accuracy for miniature printed sheets, with quick changeover for small-batch production. Ideal for pharmaceutical inserts, mini leaflets and small flyers; supports accordion, parallel, half, double parallel and cross folds.
Sheets run from 60 ร 100 mm up to 490 ร 1000 mm, at 180 m/min with a 550 mm pile, 32 mm folding rollers and a 20 mm minimum buckle fold. Creasing pressure is adjustable across the paper weight range, and the folding section is designed for miniature light-weight leaflets and brochures.
Typical configuration: 10+4 or 12+6 buckle plates with the automatic sheet feeder, and a belt delivery or a vertical stacker where folded panels are small enough to need one. 3.5 kW at 380 V; 4650 ร 1100 ร 1500 mm; 990 kg.
Further configuration examples are shown below. Confirm the plate set against your own fold pattern before ordering.
T490 configuration: 490/600 shared 10 buckle
T490 configuration: 490/600 shared 12+4
Reference specifications for T490. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 ร 100 mm |
|---|---|
| Max. sheet size | 490 ร 1000 mm |
| Max. paper pile height | 550 mm |
| Paper weight range | 28โ200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (LรWรH) | 4650 ร 1100 ร 1500 mm |
| Net weight | 990 kg |
Examples named in this model's product overview. The ordered plate arrangement, paper and finished format determine the actual fold set; confirm each job with a fold test.
Half fold One fold, two panels โ leaflets, mailers, greeting cards.
Accordion fold Concertina panels alternating in direction โ ้ฃ็ดๆ.
Double parallel fold Two folds, four panels, opened in the middle like a book.
Cross fold A parallel fold followed by a fold at right angles on the second unit. Selected items mentioned in this model's published overview and features. Their labels describe the relationship, not a standard bill of materials; confirm the ordered configuration with our team.

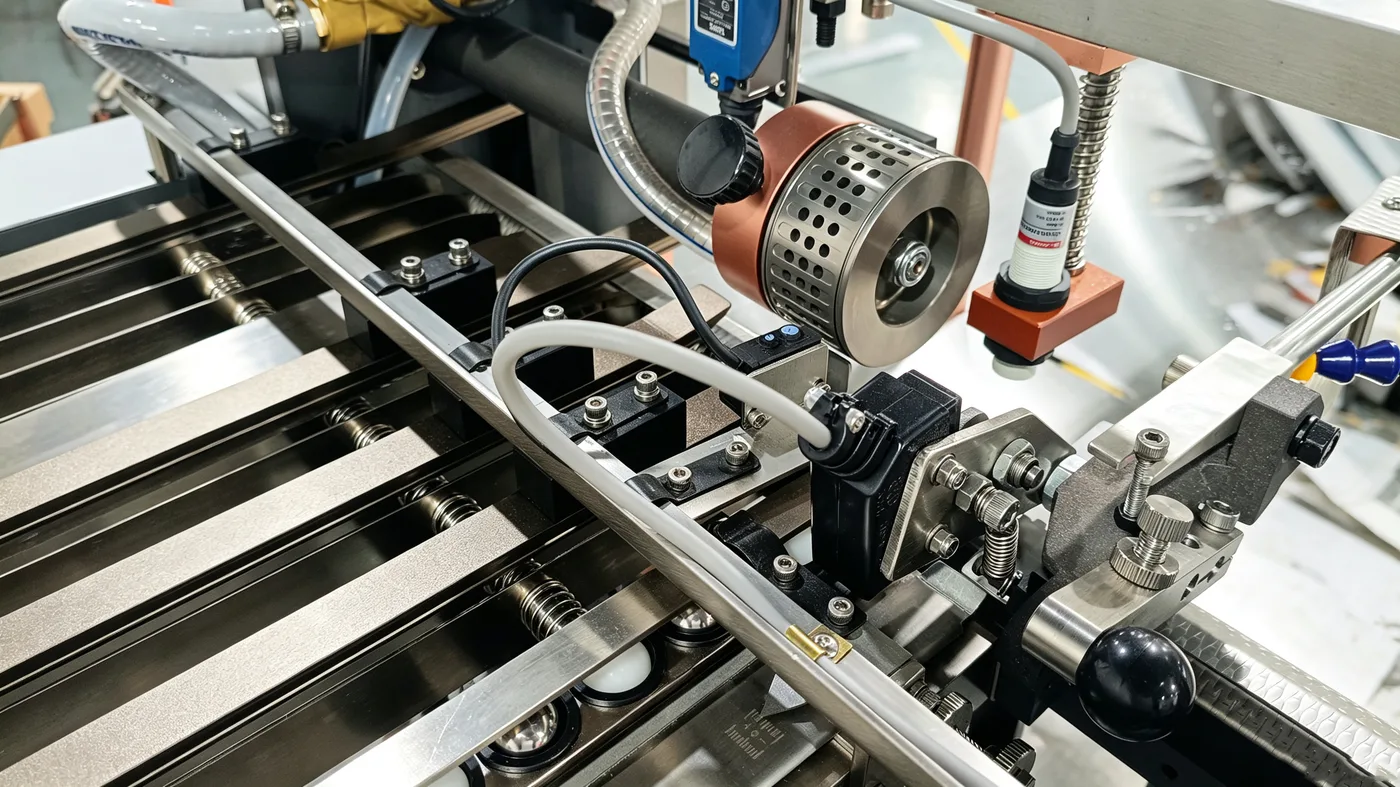

described feature Three-Hole Suction Wheel Feeding system described for the T490.

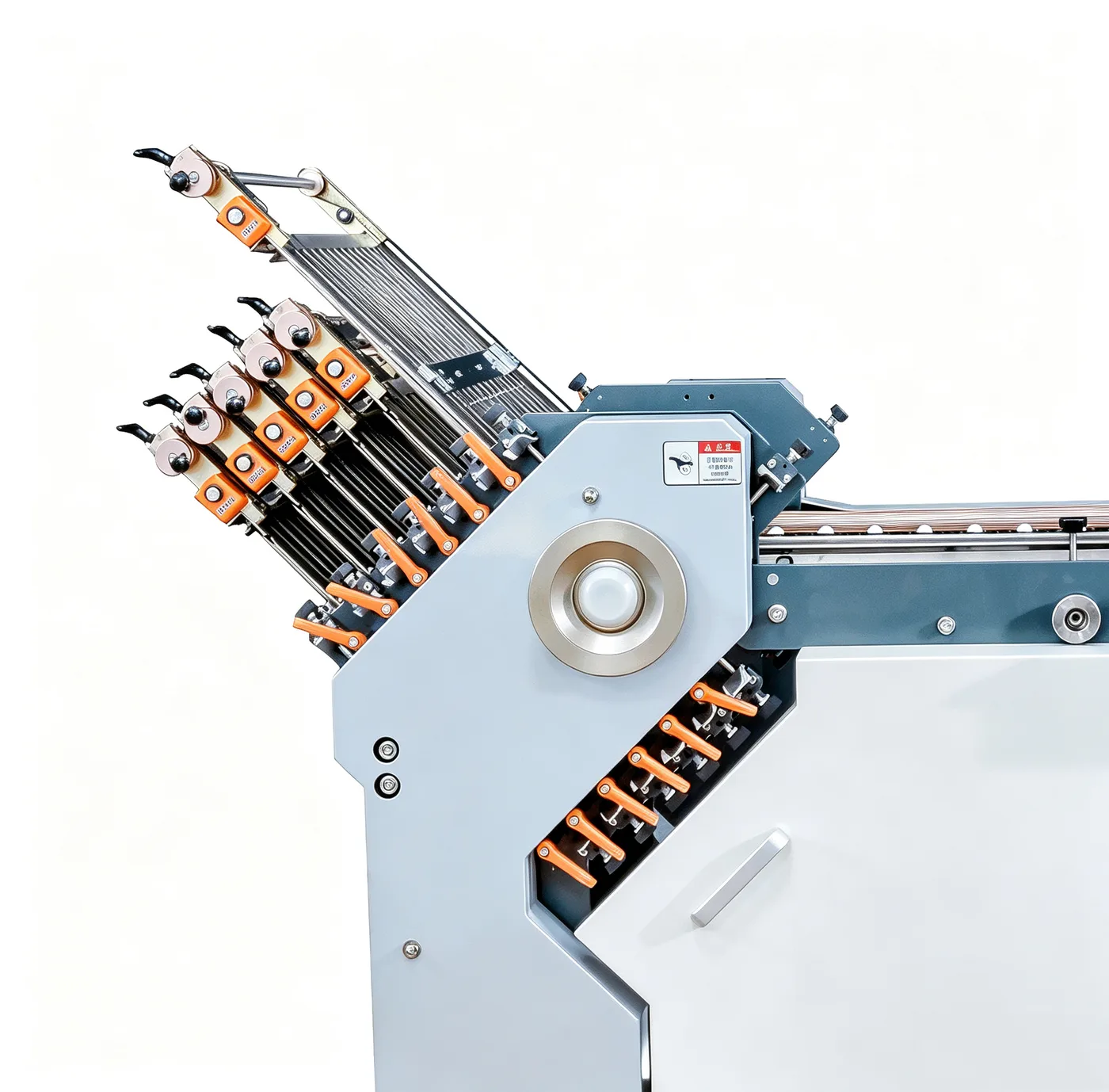

described feature Buckle Folding Plates Plate count depends on the ordered configuration.

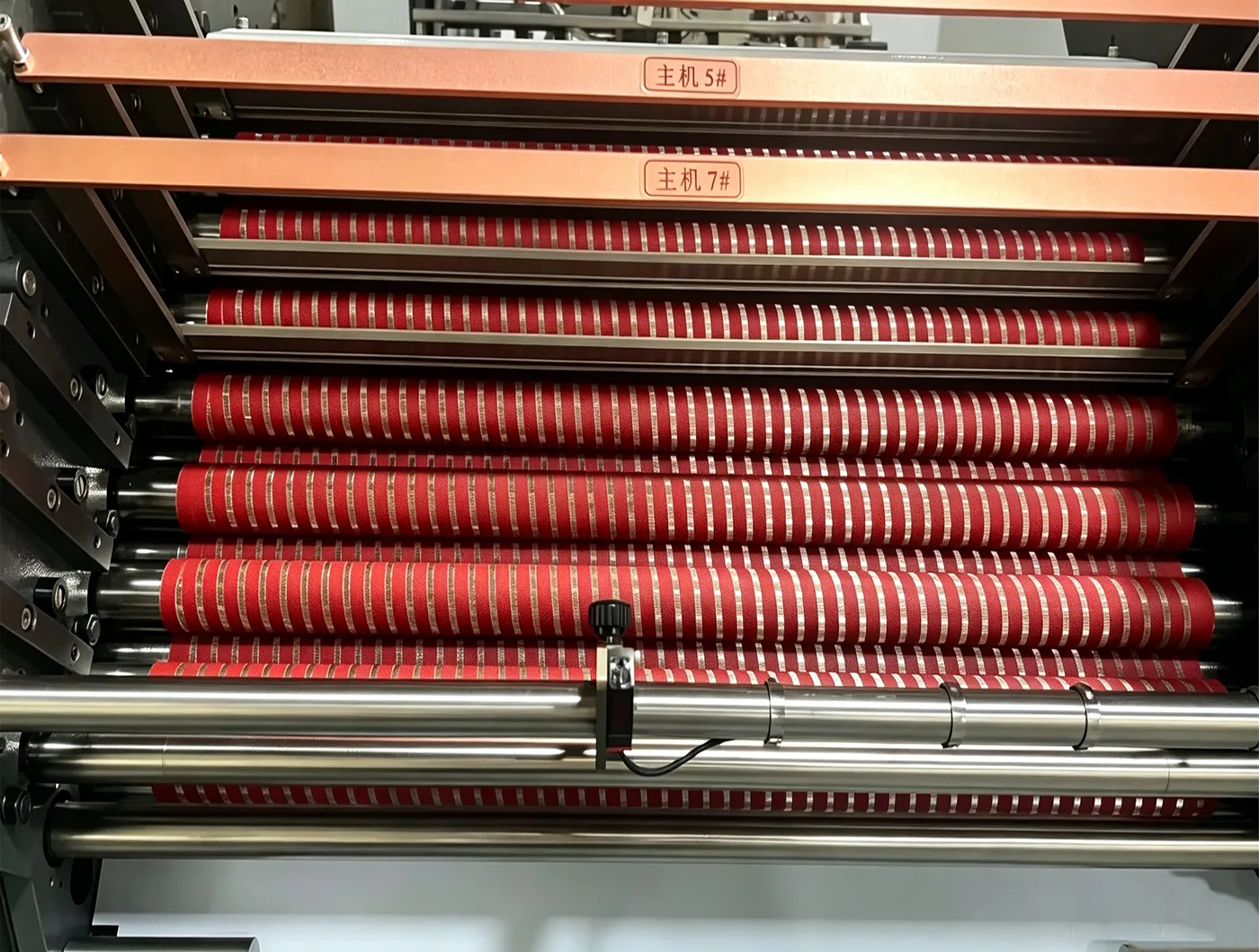

described feature Folding Rollers Roller construction is described in the T490 specification.

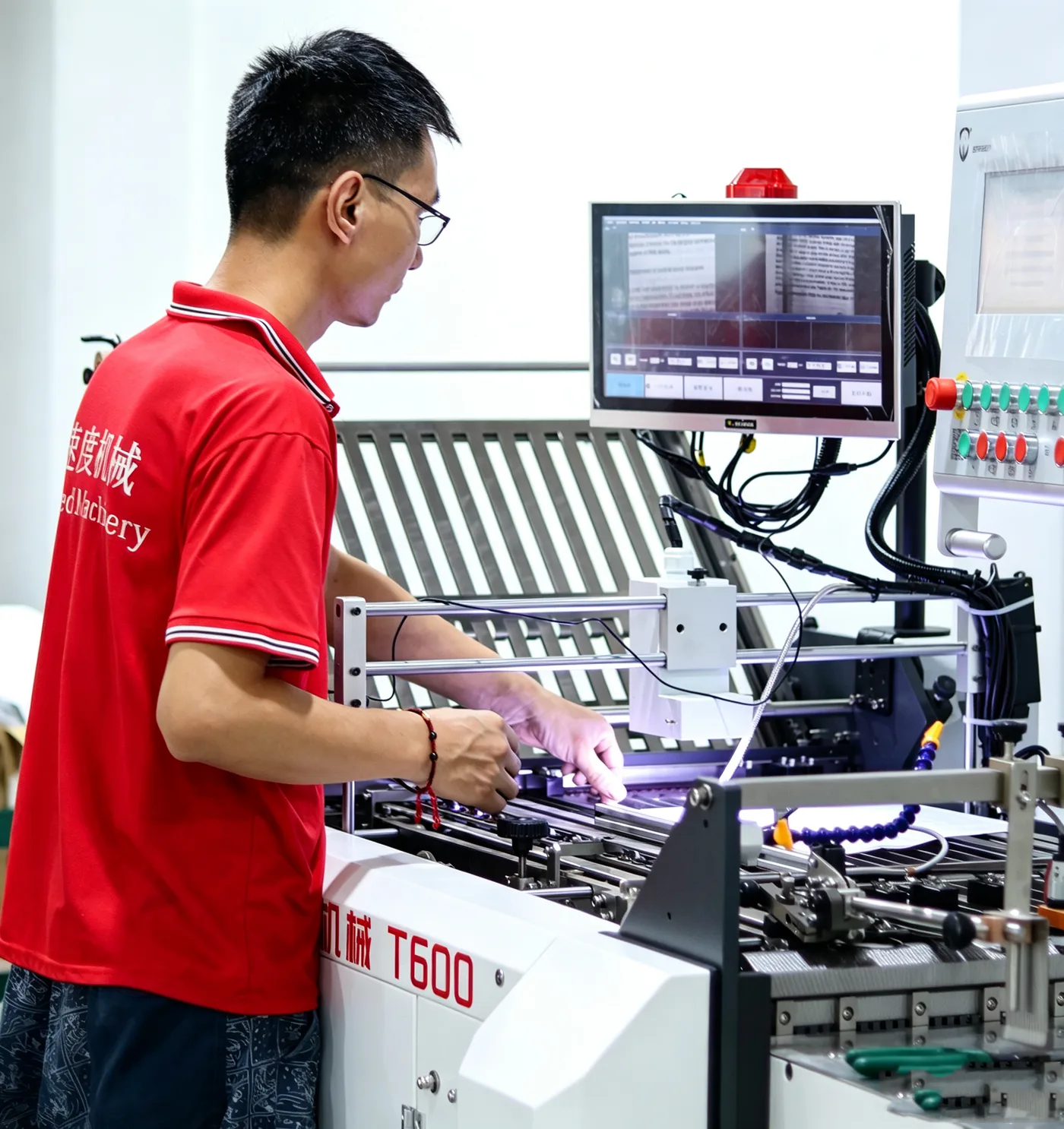

available option CCD Vision Inspection System CCD inspection is listed as an option.

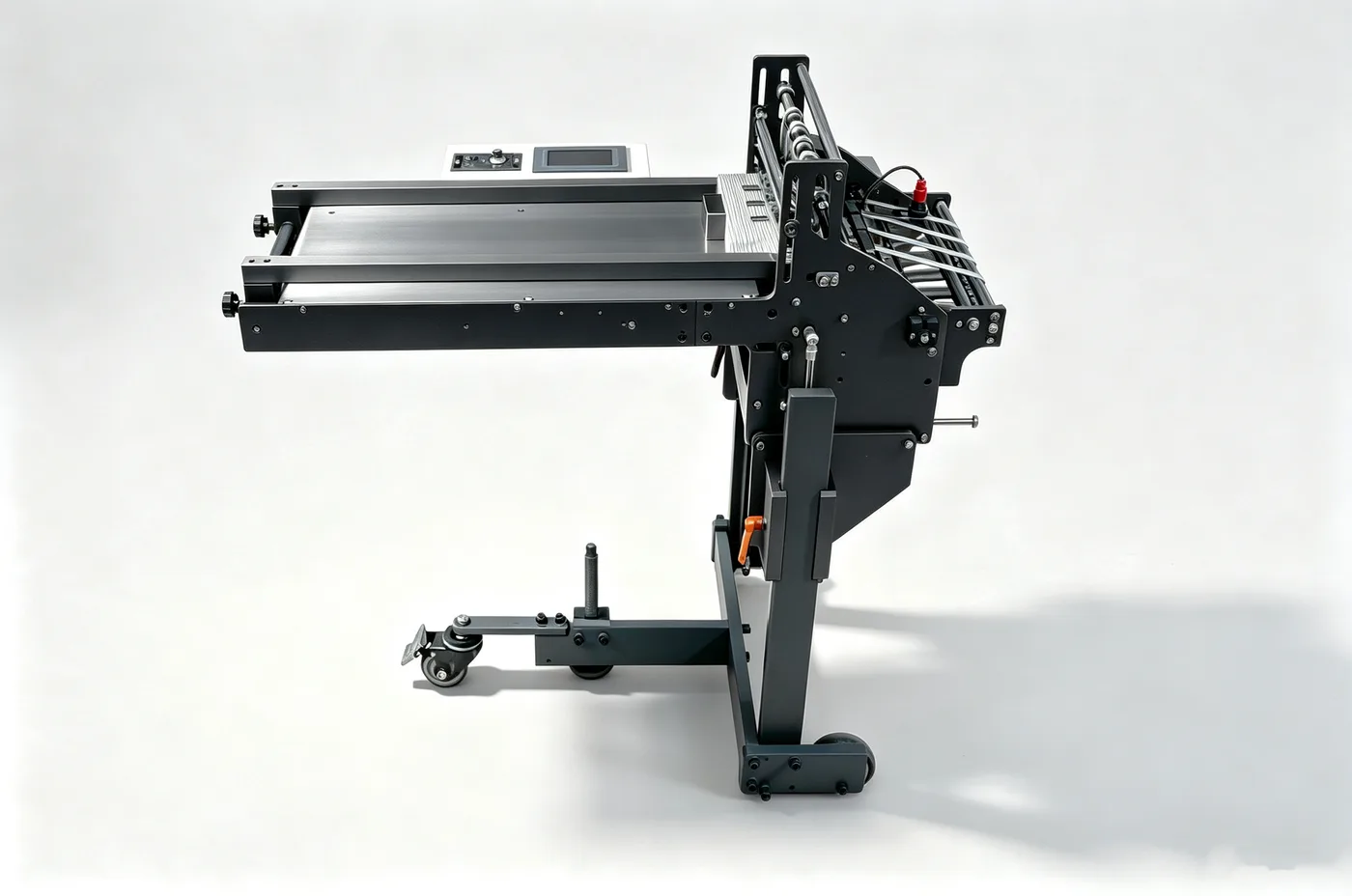

configuration example Vertical Stacker Delivery Mentioned for small folded panels; confirm the delivery layout. Production and demonstration footage related to this model. YouTube loads only when you press play.
T490 with 8W6H plates and CCD inspection
The T490 configured 8W6H with a CCD inspection unit โ the mini-leaflet setup used for pharmaceutical quality control.
Watch on YouTube โInstruction-manual folding with a vertical stacker
Miniature instruction-manual folding with the vertical stacker module โ the configuration pharmaceutical printers use to keep small panels aligned at the delivery.
Watch on YouTube โ
