A flexible medium-small folder purpose-built for pharmaceutical leaflets and mixed print production. Fully inline compatible with a flattening press, parallel cutter, labelling machine, hot-melt gluing machine and vertical stacker.
Flexible medium-small paper folder, purpose-built for pharmaceutical leaflets and mixed print production. Fully inline compatible with flattening press, parallel cutter, labelling machine, hot-melt gluing machine and vertical stacker. Suitable for package leaflets, product manuals, brochures and direct mail; supports gate, accordion, cross and statement folds.
Sheet range 60 × 100 mm to 520 × 1000 mm, 550 mm pile, 180 m/min, 32 mm rollers and a 20 mm minimum buckle fold — which is what lets one machine serve miniature pharma leaflets and commercial inserts.
The pharmaceutical line built on this platform adds a parallel knife unit, a pressing machine and a vertical stacker, giving a line footprint of 3200 × 2600 × 1500 mm. The folder alone is 4650 × 1100 × 1500 mm; 3.5 kW at 380 V.
Reference specifications for T520. Confirm the final dimensions, speed and included equipment for your ordered configuration.
| Min. sheet size | 60 × 100 mm |
|---|---|
| Max. sheet size | 520 × 1000 mm |
| Max. paper pile height | 550 mm |
| Paper weight range | 28–200 gsm |
| Min. buckle fold size | 20 mm |
| Folding roller diameter | 32 mm |
| Max. speed | 180 m/min |
| Machine power | 3.5 kW |
| Voltage | 380 V |
| Overall dimensions (L×W×H) | 4650 × 1100 × 1500 mm |
| Net weight | 990 kg |
Examples named in this model's product overview. The ordered plate arrangement, paper and finished format determine the actual fold set; confirm each job with a fold test.
Gate fold Two panels fold inward and meet in the centre — the classic programme insert.
Accordion fold Concertina panels alternating in direction — 风琴折.
Cross fold A parallel fold followed by a fold at right angles on the second unit. Selected items mentioned in this model's published overview and features. Their labels describe the relationship, not a standard bill of materials; confirm the ordered configuration with our team.
described feature Three-Hole Suction Wheel Feeding system described for the T520.
described feature Buckle Folding Plates Plate count depends on the ordered configuration.
described feature Folding Rollers Roller construction is described in the T520 specification.
available option CCD Vision Inspection System CCD inspection is listed as an option.

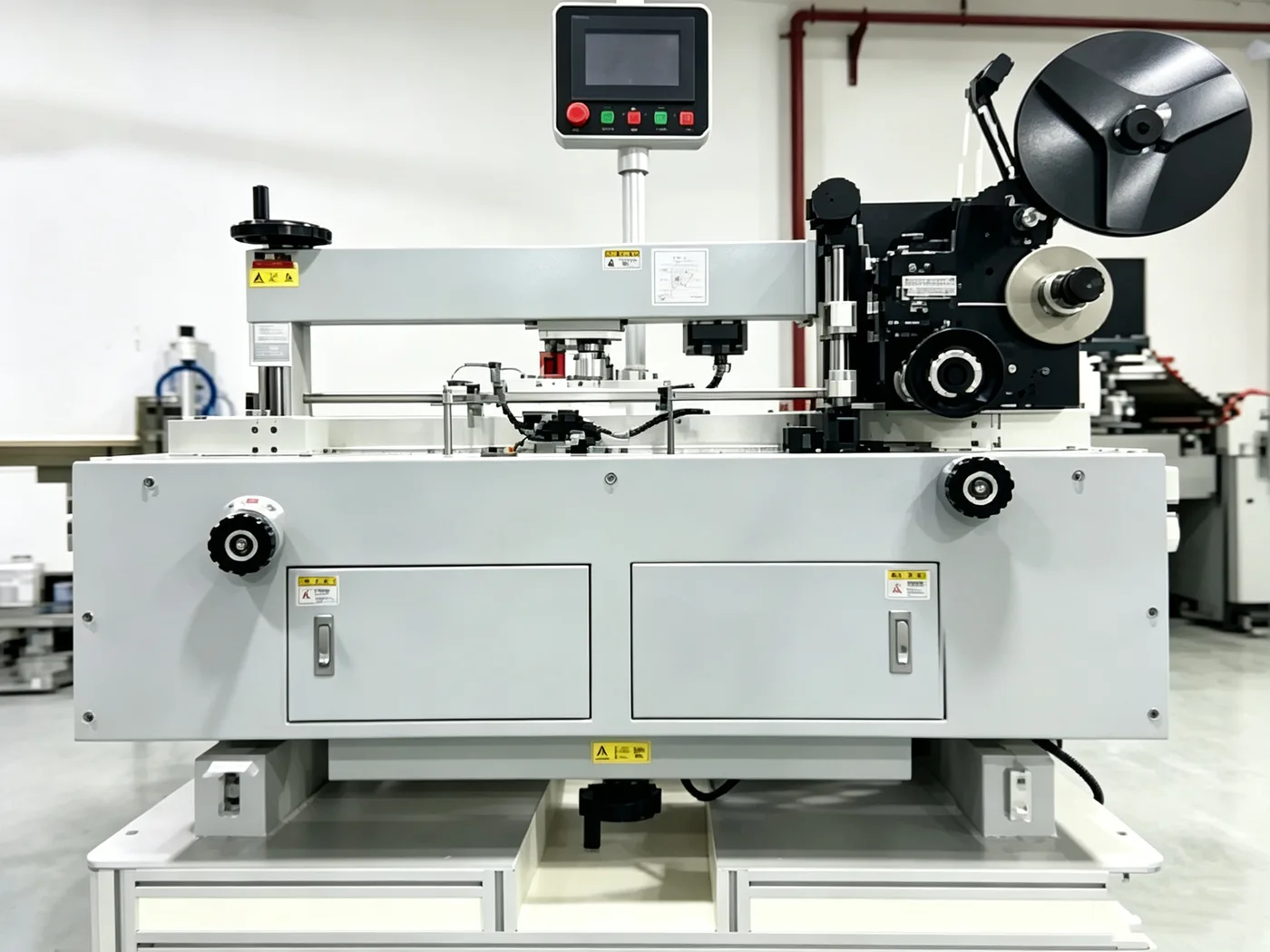

line integration Inline Labeling Unit Inline compatibility is described; the unit is specified separately.

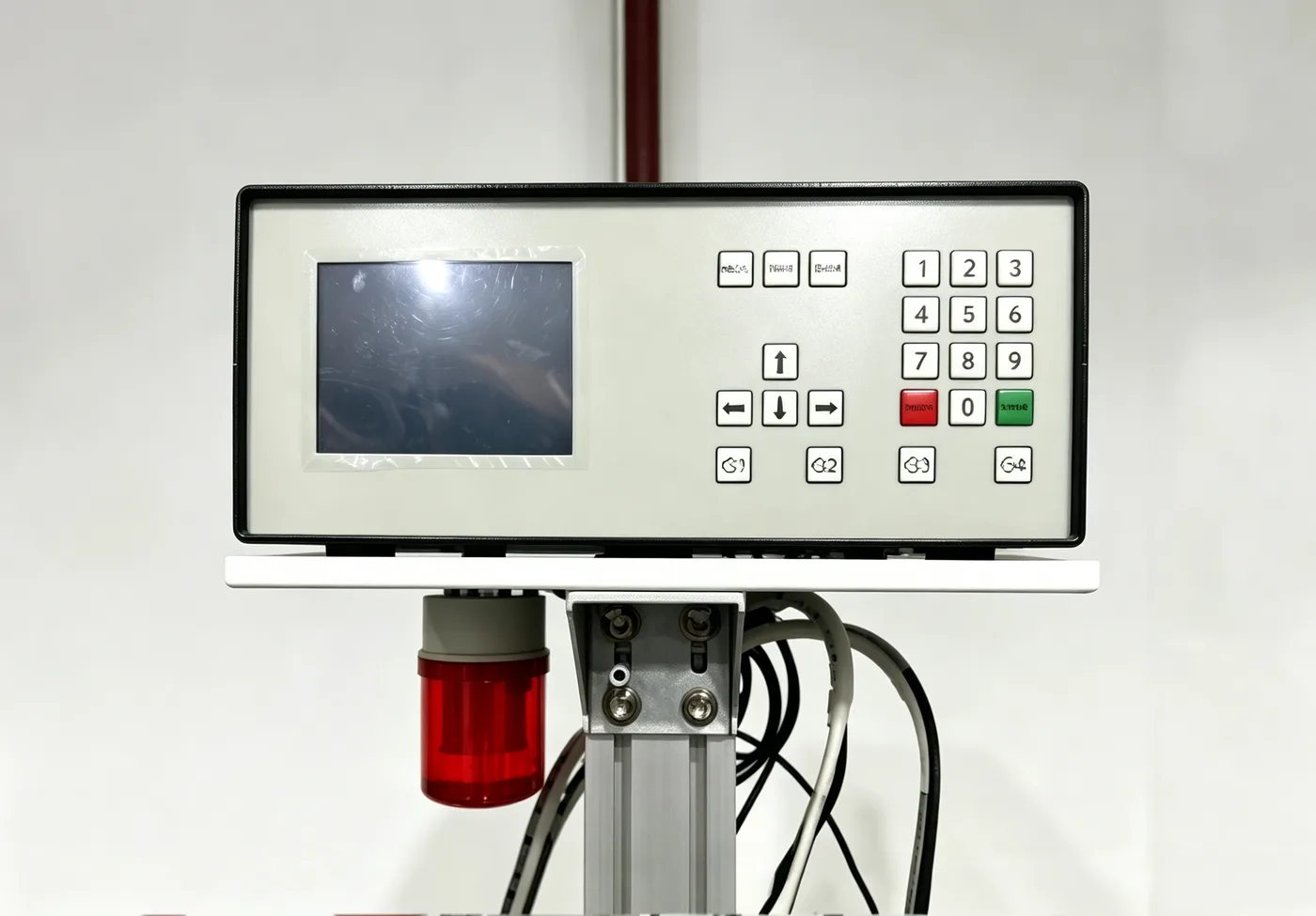

line integration Glue Application System Hot-melt gluing compatibility is described; confirm the required system.
line integration Vertical Stacker Delivery Included in the described pharmaceutical line, not every folder configuration. Production and demonstration footage related to this model. YouTube loads only when you press play.
T520 running 10H6W-F
T520 with the 10H6W-F plate configuration in high-speed production.
Watch on YouTube →Pharmaceutical leaflet and insert folding line
The pharmaceutical folding line as a system: miniature buckle folding, parallel knife trimming and press flattening working as one process.
Watch on YouTube →
Solution · Automatic folding Automatic Paper Folding Machines An automatic paper folding machine does three things a hand-fed folder cannot: it separates one sheet at a time from a full pile, it holds that sheet in register through every fold, and it delivers a counted, squared stack at the end. Everything that decides your unit cost — how many operators you n
Solution · Pharmaceutical leaflets Pharmaceutical Leaflet Folding Machines A patient information leaflet is the hardest folding job in print. The sheet is small — often 60 × 100 mm unfolded in the miniature end of the range — the paper is thin, the fold has to be square enough to feed a cartoning line, and the fold line must not crack the ink or the fibre. Get any of those Solution · Outsert systems Pharmaceutical Outsert Folding Systems An outsert is a leaflet folded deep enough — typically eight, twelve or sixteen panels — that it becomes a small booklet in its own right, usually wrapped around or packed with the primary container. The engineering problem is that every additional panel multiplies the error of the panels before it, Solution · Commercial print Commercial Paper Folding Machines A commercial print finisher is judged on the number of different jobs that can leave the floor in a day. That makes changeover time, fold-pattern range and the ability to switch paper stock between jobs more important than a headline speed figure nobody runs all week. Seven decisions, in the order that eliminates machines fastest — with the numbers to bring to a supplier.
What actually drives the price, which options earn their cost, and how to plan installation and acceptance.
Two mechanisms, two sets of strengths — and the cases where the answer is a machine that does both.
T490 A high-precision entry-level buckle folder for miniature printed sheets, with quick changeover for small-batch production. The most compact machine in the SPEED range and the usual choice for pharmaceutical inserts and instruction leaflets.
T600 A high-output commercial folder for medium to large printing facilities, engineered for uninterrupted bulk production with stable quality over extended runs. The usual choice for mass-produced brochures, catalogues and pharmaceutical inserts.
T780 The flagship heavy-duty industrial model for oversized sheets and high-volume lines, equipped with a vacuum feeding system, double-sheet detection, servo drive and PLC touch-screen control. Built for large brochures, maps and packaging work.
Folded to carton-insert size from 40–120 gsm pharma paper; the highest-volume pharmaceutical folding job.
Patient information leaflets must fit the carton while retaining readable multi-panel copy. Miniature sheet handling, repeatable fold position and counted delivery are the main production checks.
The T490 and T520 cover leaflet folding; the SD-X250 can trim or slit a finished leaflet when the cut edge is part of the job. Confirm the pattern on the actual stock before specifying the line.
Deep-folded leaflets of 8, 12 or 16 panels that behave like a booklet and must lie flat for packing.
An outsert folds a larger information sheet into a compact, multi-panel piece for a carton. The finished stack must lie flat and feed consistently into packing equipment.
The folding platform and plate arrangement depend on the panel count and sheet. Where required, the SD-X250 trims the folded work and the SD-XP300 presses the finished stack.
Leaflets and promotional inserts folded to carton size, packed by automatic equipment.
Carton inserts and promotional leaflets are folded to a finished size that downstream equipment can pick up consistently. Square edges and flat stacks may be needed for automatic packing.
T520, T600 or T780 folding configurations can be paired with SD-X250 trimming or SD-XP300 pressing when the finishing requirement calls for them. Confirm the carton and stock before selecting modules.
Send your sheet size, finished size, paper weight and fold pattern. Our team can review the machine configuration and arrange a sample test for your job.
